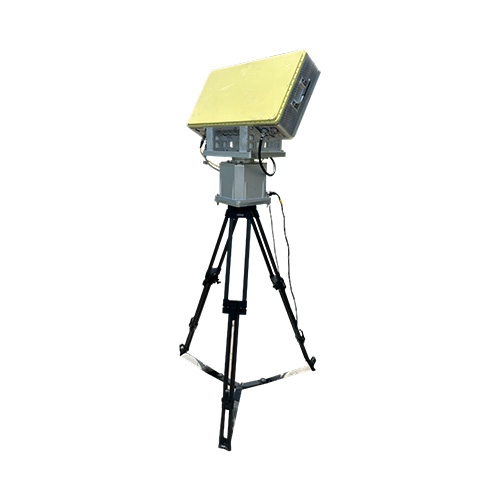

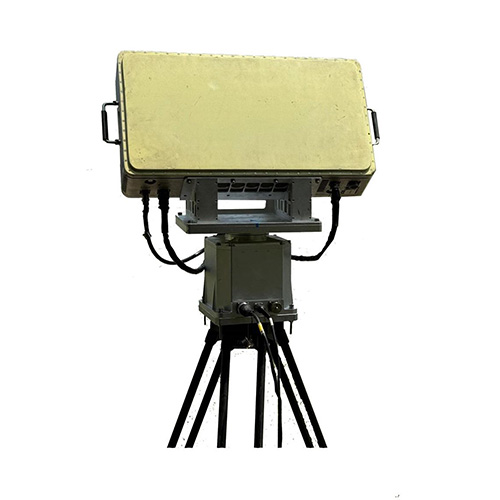

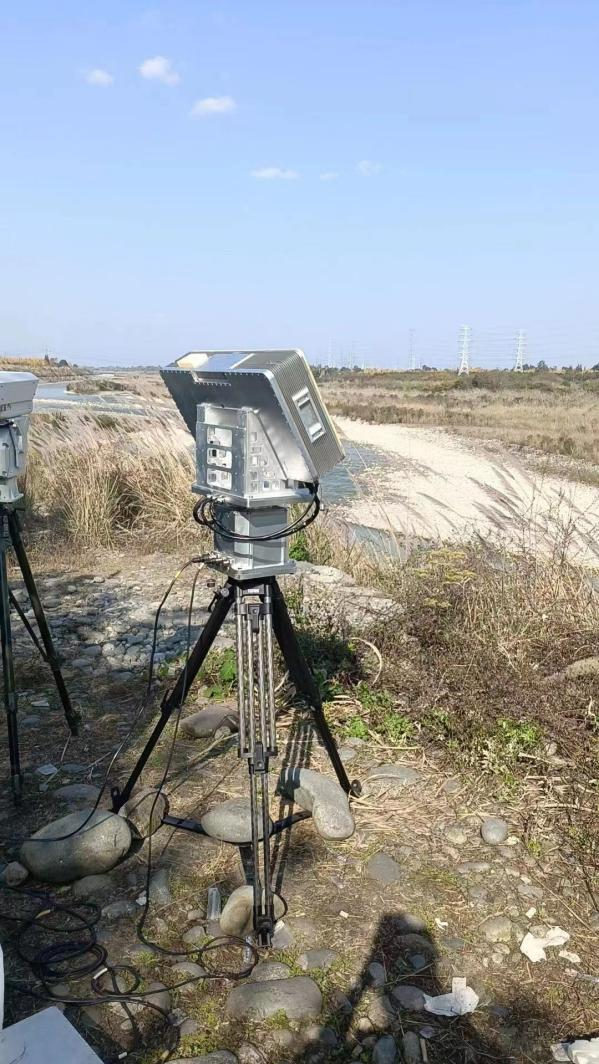

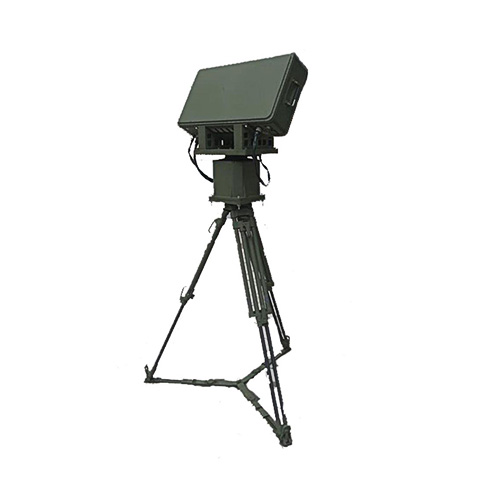

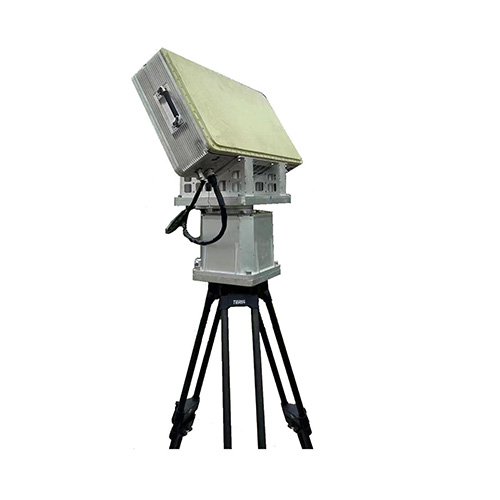

The SFGT-XRA2 radar is a low-altitude surveillance radar operating in the X-band frequency. It detects and identifies ground moving targets, low-altitude helicopters, drones, and surface targets at sea. The radar performs target detection, discovery, localization, and classification. The low-altitude security radar system operates effectively in complex environments with strong clutter, extracting target information to provide support for operational personnel.
Suitable for round-the-clock security monitoring in key areas such as warehouses, factories, residential areas, ports, docks, airports, and stations. Provides drone early warning and monitoring in key areas such as petroleum and petrochemical facilities, forestry, farms, and scenic spots.
Dimensions
Main Unit Dimensions: 700mm * 385mm * 160mm
Packaging Dimensions: 870mm * 470mm * 240mm
Weight: ≤30kg + 22kg (radar front-end equipment + servo turret)
Operating Frequency | X-band |
Operating Mode | Ground mode, Air-to-Ground mode |
Detection Range | （Pd=0.8，Pfa=10-6）≥5km(θ=0.01㎡) （Pd=0.8，Pfa=10-6）≥10km(θ=0.1㎡) （Pd=0.8，Pfa=10-6）≥12km(θ=0.5㎡) |
Antenna Sector Scanning Range | 0°~360° |
Depression Angle Coverage | 0°~60° |
Target Radial Speed | 1m/s~30m/s |
Minimum Detection Range | ≤180m |
Range Accuracy | ≤10m |
Azimuth Accuracy | ≤0.6° |
Elevation Accuracy | ≤0.3° |
Elevation Resolution | ≤7° |
Range Resolution | ≤3.75m |
Azimuth Resolution | ≥3° |
Speed Accuracy | 1km/h |
TX Power | 160w |
Weight | ≤30kg(Main equipment) |
Dimensions | / |
MTBF | ≥5000h |
MTTR | ＜30min |
