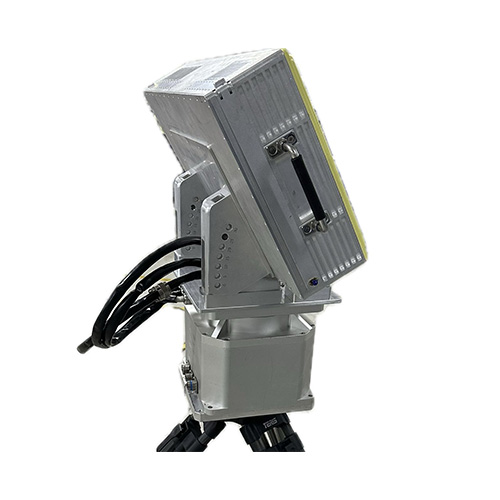

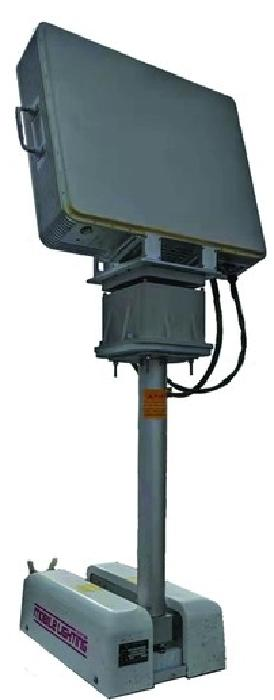

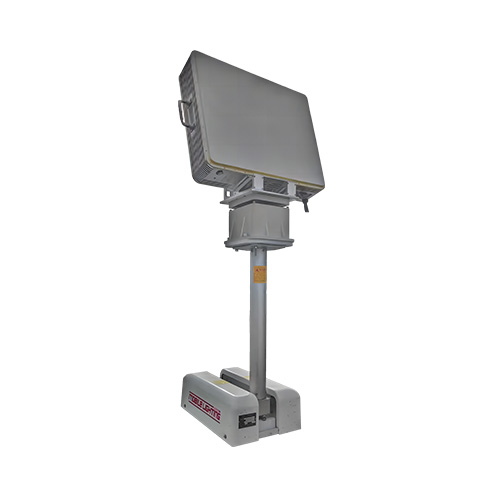

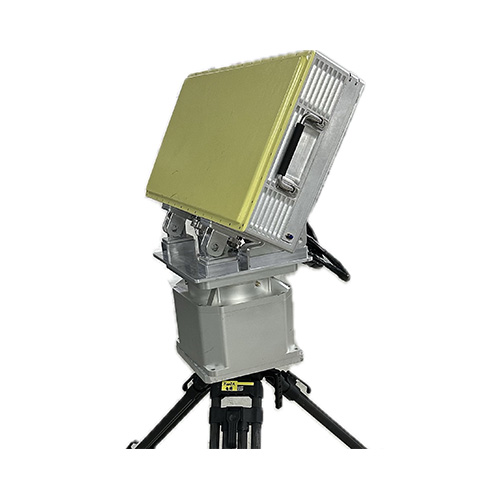

The SFGT-KuRA1 radar is a low-altitude surveillance reconnaissance device operating in the Ku-band frequency range. It is capable of detecting low, small, and slow targets within a 5km range. This radar utilizes an Active Electronically Scanned Array (AESA) system. It employs phase scanning in the elevation dimension and mechanical scanning in the azimuth dimension to achieve 360° azimuth coverage. The entire system is designed with a modular, fully solid-state architecture to ensure equipment reliability.

It is suitable for all-weather security monitoring of key areas such as warehouses, factory zones, residential communities, ports, airports, and stations. It is also ideal for drone early warning and monitoring in critical areas such as oil and petrochemical facilities, forests, farms, and scenic spots.

Product Dimensions

Main Unit Dimensions: 590 mm * 475 mm * 126 mm

Packaging Dimensions: 950 mm * 520 mm * 180 mm

Weight: 27 kg (main unit + Rotary table)
